•Aluminum alloy sheave
•Requires locking oval or HMS carabiner; cannot be used with D-shapes

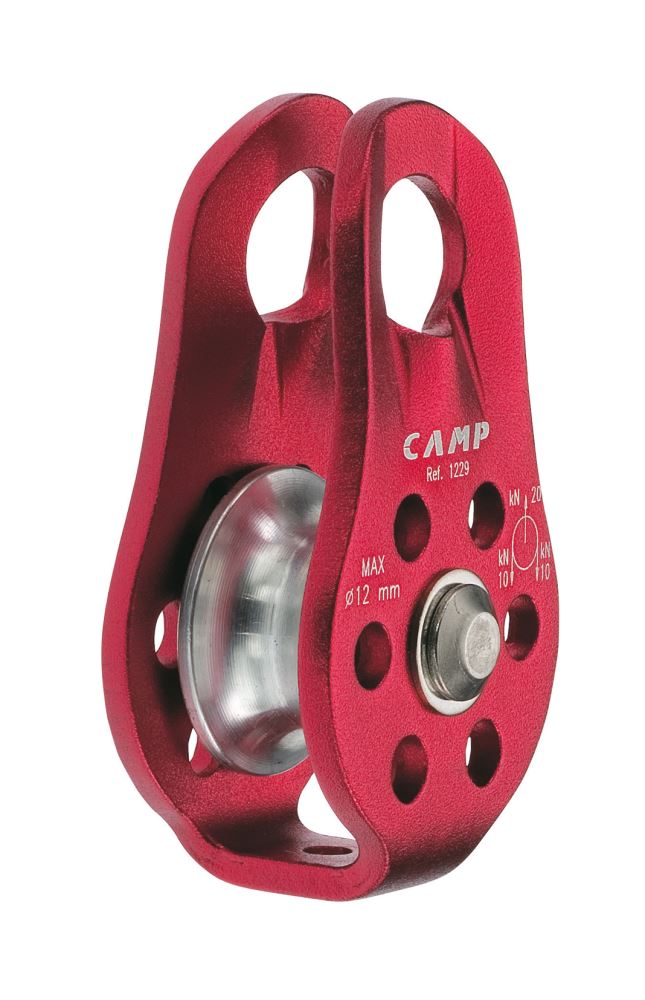

The fixed side plates make this an excellent pulley for quickly rigging a hauling system using an ascender. Clip a locking oval carabiner into the two pulley holes, then clip the carabiner to top of an ascender. Attach this rig to an anchor point that can rotate (such as a sling) using a locking carabiner clipped to the oval carabiner (between the side plates).
Max Rope Diameter: 12 mm
Working Load: 2.5 kN x 2 = 5 kN, 560 LBF x 2 = 1120 LBF
Breaking Load: 10 kN x 2 = 20 kN, 2250 LBF x 2 = 4500 LBF
Ball Bearings: No
Brass Bushing: Yes
Inner Sheave Diameter: 21 mm, 0.8 in
